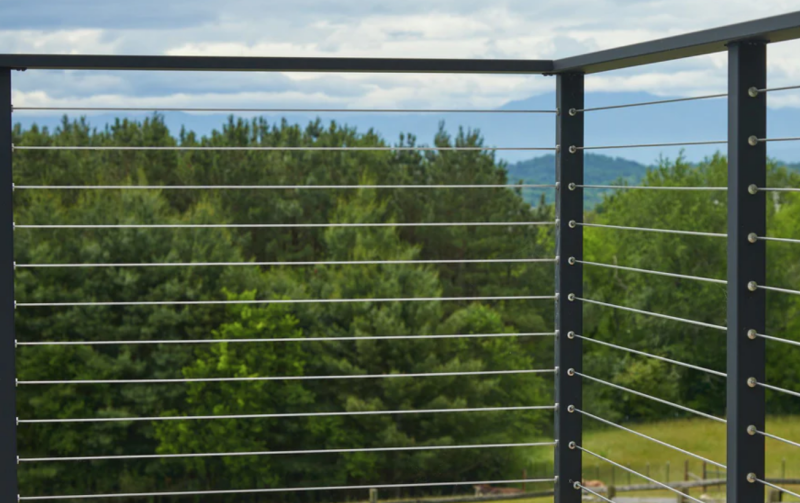

1x19 cable is the standard infill for cable railing systems. With a simple design of 19 steel strands twisted together, this type of cable is visually sleek and particularly strong, allowing for thinner diameters that better keep your view open without compromising safety.

Unlike the typical rigging cables used in construction, our cable is independently verified and chemically tested to only be Grade 316L: a specific class of marine grade stainless steel that boasts lower carbon content and higher luster. Stainless Steel Cables provide corrosion resistance, durability and strength, as well as beauty, year after year.

3/16" diameter has widespread use in commercial and residential applications for its superior strength and durability. 1/8" diameter is used primarily in residential railing applications.

Two different construction types are available to complete your wire rope cable assembly.

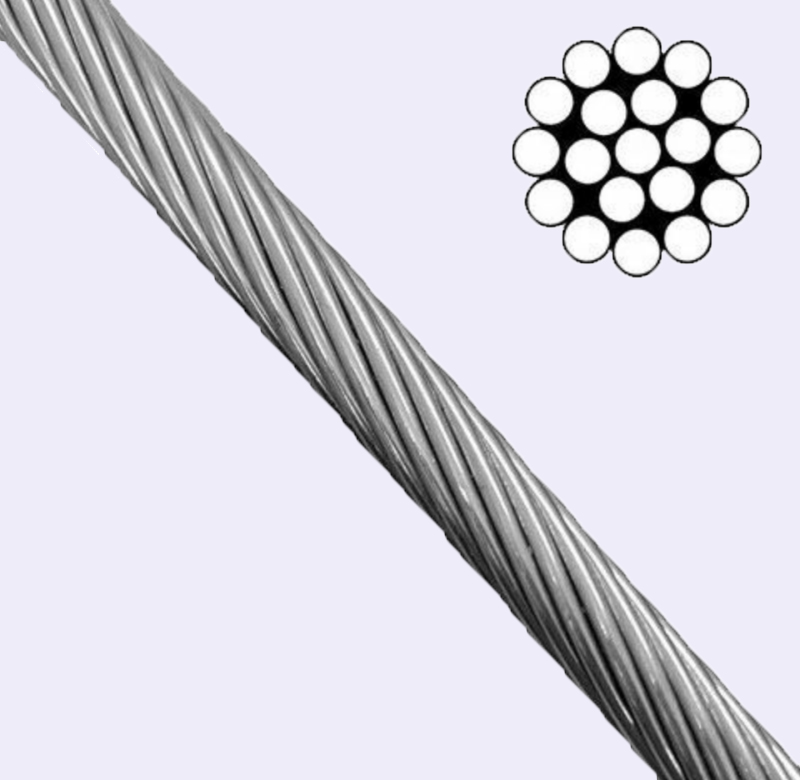

1x19 STAINLESS CABLE is used for straight cable runs and cable runs with slight bends. 19 individual wires are twisted to form the wire strand. Actual Breaking Load: 3/16" 4719 lbs/ 1/8" 1890 lbs

7x7 STAINLESS CABLE is more flexible than 1x19. 7 individual wires form a bundle and 7 bundles are twisted into the wire rope. Actual Breaking Load: 3303 lbs

Benefits / Technical Information:

1. Material: 316L or 316

2.Size Options: 3/16" or 1/8"

3Actual Breaking Load: 3/16" 4719 lbs. / 1/8" 1890 lbs.

4.polished with bright surface to be more competitive
