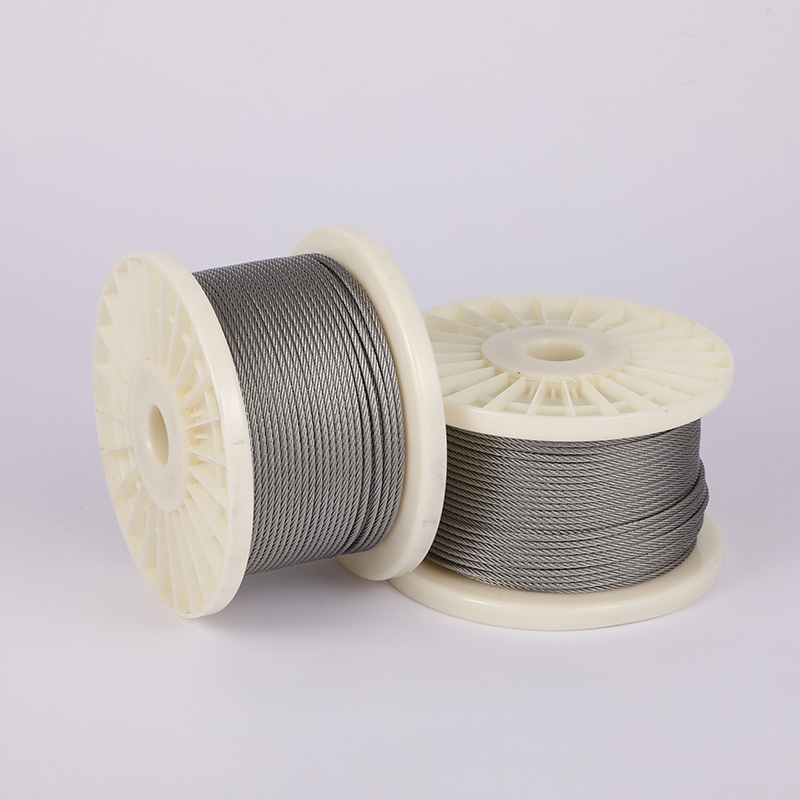

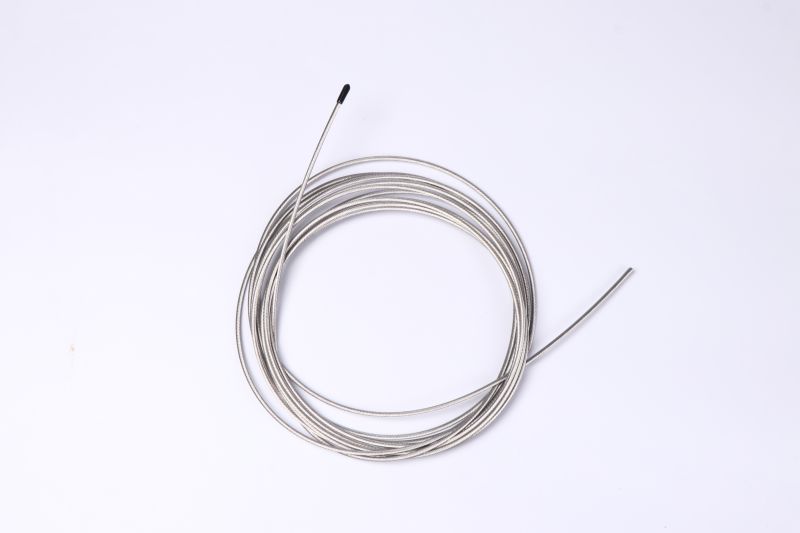

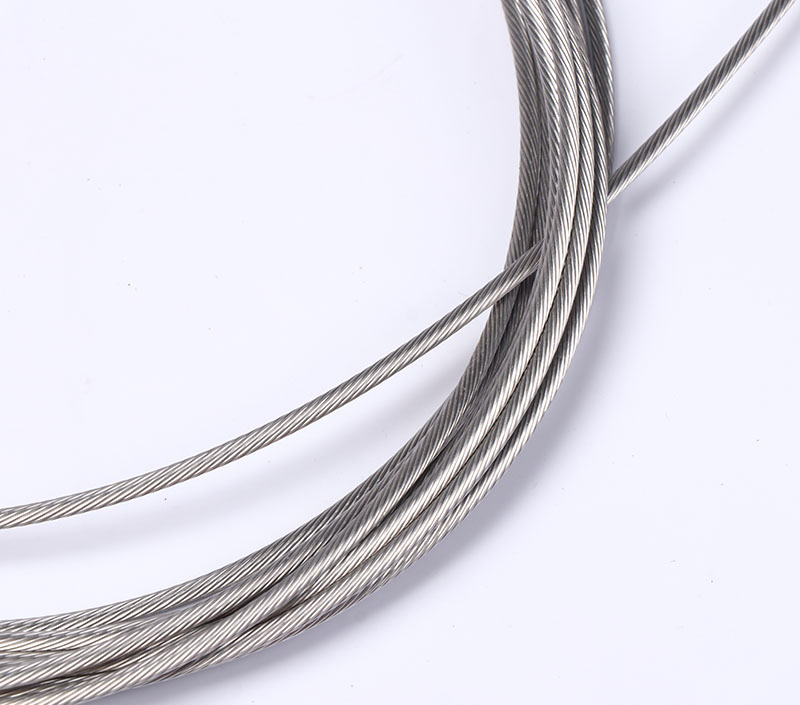

Control cable
Material: stainless steel AISI304. AISI316
Features: Compared with ordinary steel wire ropes, the surface of the control
Wire rope is smoother.the tensile strength level is higher.the breaking force is larger.the verticality is better,and the fatigue life is longer.
Application: car, motorcycle control cable, brake line and review mirror control line. Window lift cable and medical device steering line.
|
Construction |
Diameter（mm） |
Weight（kg/100m） |
Min.breaking Load(Kn) |
|
|
0.3 |
0.05 |
0.084 |
|
0.4 |
0.08 |
0.167 |
|
|
0.5 |
0.13 |
0.264 |
|
|
0.6 |
0.18 |
0.382 |
|
|
0.8 |
0.32 |
0.666 |
|
|
1.0 |
0.50 |
1.030 |
|
|
1.2 |
0.72 |
1.470 |
|
|
1.4 |
0.98 |
2.000 |
|
|
1.5 |
1.13 |
2.250 |
|
|
1.6 |
1.28 |
2.550 |
|
|
1.8 |
1.62 |
3.230 |
|
|
2.0 |
2.00 |
4.000 |
|
|
|
0.8 |
0.26 |
0.507 |
|
1.00 |
0.41 |
0.791 |
|
|
1.20 |
0.58 |
1.140 |
|
|
1.25 |
0.63 |
1.236 |
|
|
1.50 |
0.91 |
1.780 |
|
|
1.60 |
1.04 |
2.025 |
|
|
1.80 |
1.32 |
2.445 |
|
|
2.00 |
1.62 |
3.019 |
|
|
2.50 |
2.54 |
4.720 |
|
|
2.80 |
3.18 |
5.600 |
|
|
3.00 |
3.65 |
6.430 |
|
|
3.20 |
4.16 |
7.315 |
|
|
3.50 |
4.97 |
8.752 |
|
|
3.60 |
5.26 |
9.260 |
|
|
4.00 |
6.50 |
11.430 |
|
|
4.50 |
8.22 |
14.470 |
|
|
4.80 |
9.35 |
16.460 |
|
|
5.00 |
10.12 |
17.860 |
|
|
5.50 |
12.28 |
21.600 |
|
|
6.00 |
14.62 |
25.720 |
|
|
|
1.5 |
0.92 |
1.96 |
|
1.6 |
1.05 |
2.25 |
|
|
1.8 |
1.32 |
2.59 |
|
|
2.0 |
1.63 |
3.03 |
|
|
2.5 |
2.55 |
4.831 |
|
|
2.8 |
3.20 |
5.473 |
|
|
3.0 |
3.68 |
6.283 |
|
|
3.5 |
5.00 |
8.551 |
|
|
4.0 |
6.53 |
11.17 |
|
|
4.5 |
8.27 |
14.136 |
|
|
4.8 |
9.41 |
16.084 |
|
|
5.0 |
10.21 |
17.453 |
|
|
6.0 |
14.70 |
25.132 |
Aircraft cable
304 and 316 material with high tensile strength
|
Construction |
Diameter(inch) |
Weight(lb/100ft) |
Mormal B.S(Lbs) |
|
|
AISI304 |
AISI316 |
|||
|
|
1/32 |
0.25 |
150 |
130 |
|
3/64 |
0.55 |
375 |
320 |
|
|
1/16 |
0.85 |
550 |
480 |
|
|
5/64 |
1.40 |
850 |
740 |
|
|
3/32 |
2.00 |
1200 |
1070 |
|
|
7/64 |
2.70 |
1600 |
1440 |
|
|
1/8 |
3.50 |
2100 |
1890 |
|
|
5/32 |
5.50 |
3300 |
3000 |
|
|
3/16 |
7.70 |
4700 |
4270 |
|
|
7/32 |
10.20 |
6300 |
5730 |
|
|
1/4 |
13.5 |
8200 |
7460 |
|
|
9/32 |
17.0 |
10300 |
9360 |
|
|
5/16 |
21.0 |
12500 |
11800 |
|
|
3/8 |
30.0 |
17500 |
16500 |
|
|
|
3/64 |
0.42 |
270 |
240 |
|
1/16 |
0.75 |
480 |
420 |
|
|
5/64 |
1.10 |
650 |
570 |
|
|
3/32 |
1.60 |
920 |
810 |
|
|
1/8 |
2.80 |
1700 |
1510 |
|
|
9/64 |
4.30 |
2500 |
2270 |
|
|
5/32 |
6.20 |
3700 |
3350 |
|
|
3/16 |
8.30 |
4800 |
4360 |
|
|
1/4 |
10.6 |
6100 |
5600 |
|
|
9/32 |
13.4 |
7600 |
7000 |
|
|
5/16 |
16.7 |
9000 |
8100 |
|
|
3/8 |
23.6 |
12500 |
11400 |
|
|
|
5/64 |
1.14 |
650 |
560 |
|
3/32 |
1.74 |
920 |
810 |
|
|
1/8 |
2.90 |
1760 |
1530 |
|
|
5/32 |
4.50 |
2400 |
2110 |
|
|
3/16 |
6.50 |
3700 |
3210 |
|
|
7/32 |
8.60 |
5000 |
4350 |
|
|
1/4 |
11.0 |
6400 |
5600 |
|
|
9/32 |
13.9 |
7800 |
6800 |
|
|
5/16 |
17.3 |
9000 |
8200 |
|
|
3/8 |
24.3 |
12000 |
11000 |
|
|
7/16 |
35.0 |
16500 |
15000 |
|
|
1/2 |
46.0 |
22800 |
20700 |
|
|
9/16 |
59.0 |
28500 |
26000 |
|
|
5/8 |
72.0 |
35000 |
31900 |
|
|
3/4 |
104.0 |
49600 |
45100 |
|
|
7/8 |
142.0 |
66500 |
60500 |
|
|
1 |
185.0 |
85400 |
77600 |
|
|
11/8 |
234.0 |
106400 |
96400 |
|
|
11/4 |
289.0 |
129400 |
118000 |
|
